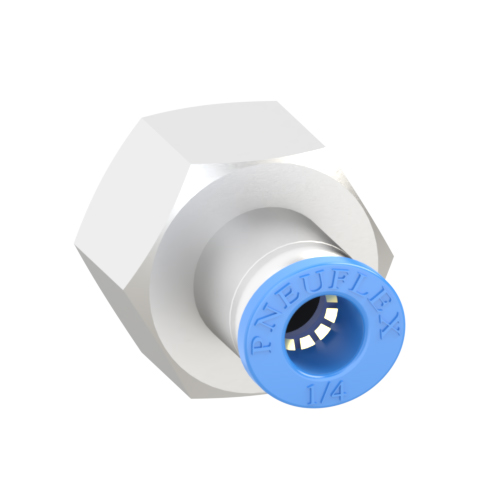

PCF 1/4-03 | 1/4 O.D Tube - R, PT, BSPT 3/8 Thread Female Connector | Push to Connect Fitting

PCF 1/4-03 female connector push to connect fitting is used to connect 1/4" O.D tubing to R, PT, BSPT 3/8 male stud thread in an inline configuration. 1/4" O.D tubing to R, PT, BSPT 3/8 female connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. 1/4" tubing to R, PT, BSPT 3/8 female connector pneumatic fittings are designed for quick tubing connection and disconnection.

Product Specifications

Applicable Tubing O.D.:	1/4"
Connection Thread:	R3/8

Fluid Admitted:	Air, Vaccum, Water(no freezing)
Body Material:	Nickel Plated Brass
Seal Material:	NBR
Working Pressure:	0∼1.0MPa | 0∼150psi
Proof Pressure:	3.0Mpa | 435psi
Negative Pressure:	-100Kpa | -29.5 In Hg
Working Temperature:	-20∼80°C | -4∼176°F
Lock Claw:	Stainless Steel (SUS)
Applicable Tube:	PU / PA / PE / PVC...
