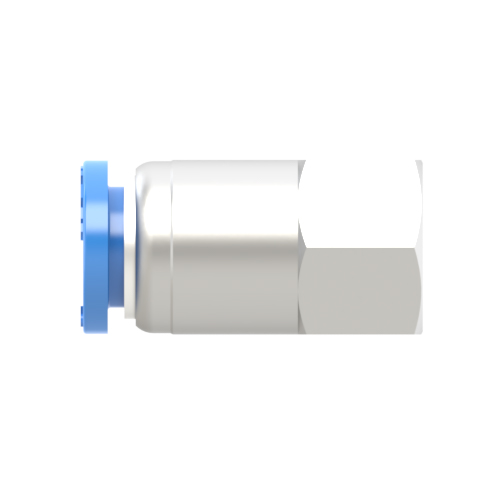

PCF 5/16-01 | 5/16 O.D Tube - R, PT, BSPT 1/8 Thread Female Connector | Push to Connect Fitting

PCF 5/16-01 female connector push to connect fitting is used to connect 5/16" O.D tubing to R, PT, BSPT 1/8 male stud thread in an inline configuration. 5/16" O.D tubing to R, PT, BSPT 1/8 female connector push to connect fitting is made of nickel plated brass, POM release sleeve and stainless steel tube gripping claw. 5/16" tubing to R, PT, BSPT 1/8 female connector pneumatic fittings guarantee leak-free and secure connections for all of your pneumatic applications.

Product Specifications

Applicable Tubing O.D.:	5/16"
Connection Thread:	R1/8

Fluid Admitted:	Air, Vaccum, Water(no freezing)
Body Material:	Nickel Plated Brass
Seal Material:	NBR
Working Pressure:	0∼1.0MPa | 0∼150psi
Proof Pressure:	3.0Mpa | 435psi
Negative Pressure:	-100Kpa | -29.5 In Hg
Working Temperature:	-20∼80°C | -4∼176°F
Lock Claw:	Stainless Steel (SUS)
Applicable Tube:	PU / PA / PE / PVC...
