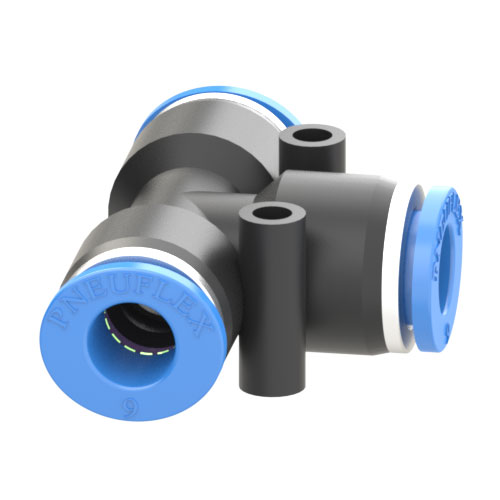

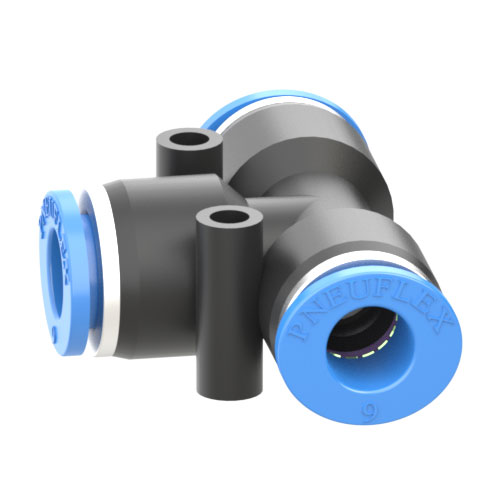

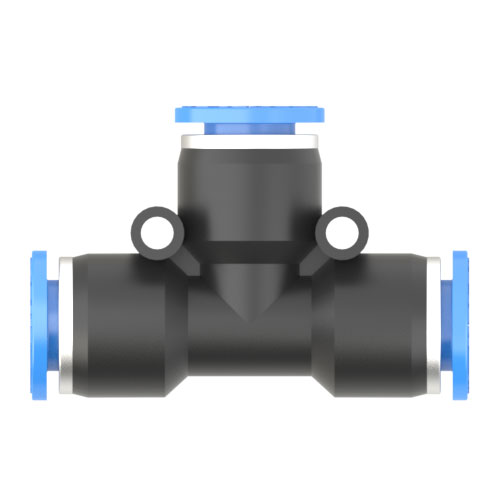

PE 09 | 9mm Union Tee - 9mm Push to Connect Fitting
9mm push to connect fitting allows connect and disconnect 9mm tubes easily and quickly without causing damage to 9mm tubes. 9mm union tee push to connect fitting is used to connect three 9mm O.D tubes at both 90° angles.
Product Specifications
| Applicable Tubing O.D.: | 9mm |
| Fluid Admitted: | Air, Vacuum, Water (no freezing) |
| Body Material: | PBT Plastic |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC Teflon Tubing ... |
Dimensions of PE 09 | 9mm Union Tee - 9mm Push to Connect Fitting
| Part No. | Applicable Tubing ΦD | ØP | B | L | E | N | ØK | O1 | O2 | C |
| PE 09 | 9mm | 19 | 56.6 | 21.8 | 28.3 | 24 | 4.2 | 19.5 | 17 | 16.8 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
Category: PE Union Tee Push to Connect Fittings
