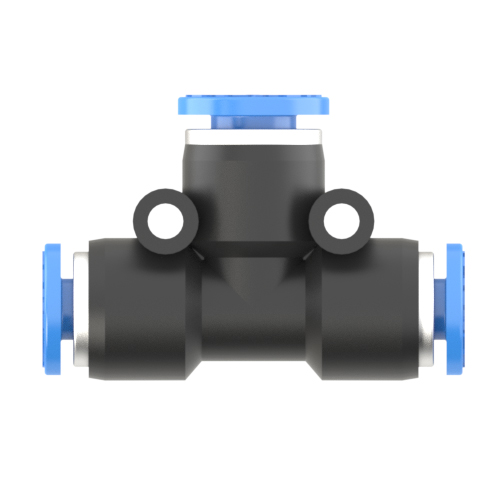

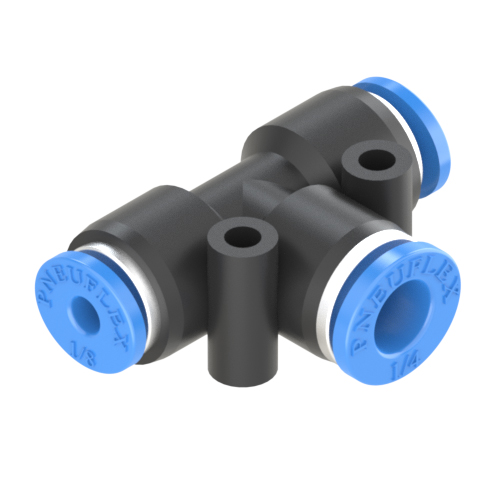

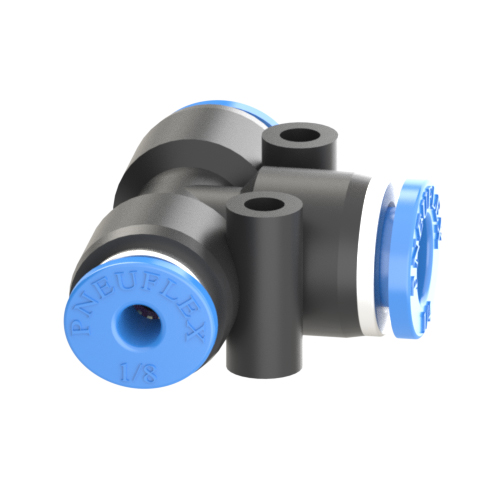

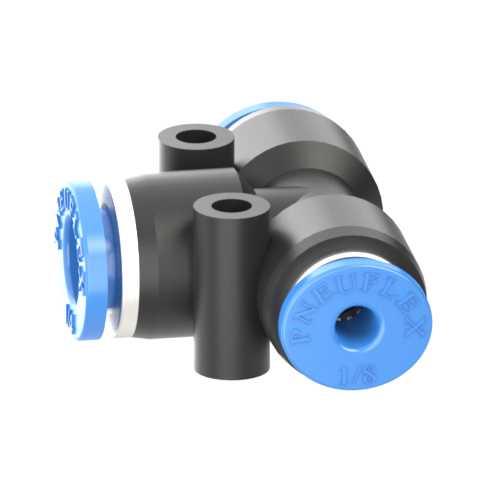

PGE 1/4-1/8 | 1/4 to 1/8 Tube Union Tee Reducer Push to Connect Fittings
1/4“ O.D to 1/8” O.D tube union tee reducer push to connect fitting is used to connect three tubings with size down in both 90 degree angles in tubing system. Quick and simple tube connection and disconnection in tubing systems. Tubing O.D in middle is 1/4 inch and another two inline tubings are 1/8 inch.
Product Specifications
| Applicable Tubing O.D.1: | 1/4" |
| Applicable Tubing O.D.2: | 1/8" |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | PBT Plastic |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC |
- Technical Data
- Downloads
Dimensions of PGE 1/4-1/8 | 1/4 to 1/8 Tube Union Tee Reducer Push to Connect Fittings
| Part No. | Applicable Tubing O.D.1 | Applicable Tubing O.D.2 | ØP1 | ØP2 | B | L1 | L2 | E | N | ØK | O1 | O2 | C |
| PGE 1/4-1/8 | 1/4" | 1/8" | 13.5 | 11 | 38 | 15.9 | 14.8 | 19 | 16 | 3.2 | 13.8/12 | 12.4/10.4 | 11.8/9.8 |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
