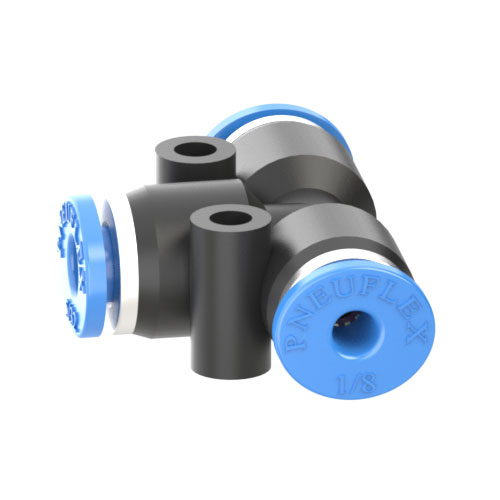

PGE 5/32-1/8 | 5/32 to 1/8 Tube Union Tee Reducer Push to Connect Fitting
5/32“ O.D to 1/8” O.D tube union tee reducer push to connect fitting is used to connect three tubings with size down in both 90 degree angles. Tubing O.D in middle is bigger than two inline tubings. 5/32 to 1/8 inch tube union tee reducer is equipped with a convenient one touch release button that provides a easy and quick tubing connection and disconnection.
Product Specifications
| Applicable Tubing O.D.1: | 5/32" |
| Applicable Tubing O.D.2: | 1/8" |
| Fluid Admitted: | Air, Vacuum, Water (no freezing) |
| Body Material: | PBT Plastic |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC Teflon Tubing ... |
Dimensions of PGE 5/32-1/8 | 5/32 to 1/8 Tube Union Tee Reducer Push to Connect Fitting
| Part No. | Applicable Tubing O.D.1 | Applicable Tubing O.D.2 |
| PGE 5/32-1/8 | 5/32" | 1/8" |
* Information contained herein may be changed without prior notification. Please contact us for confirming accurate dimensions.
