2mm miniature push to connect fittings

2d 3d file download

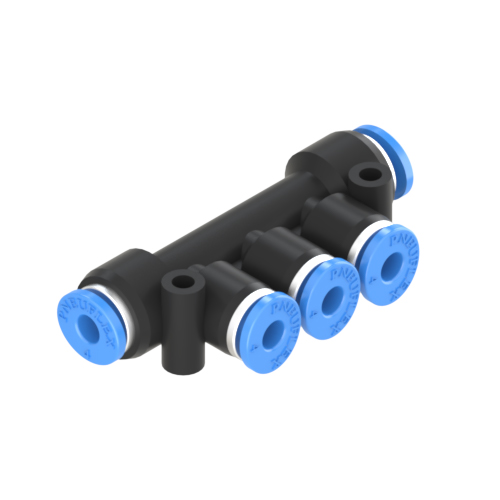

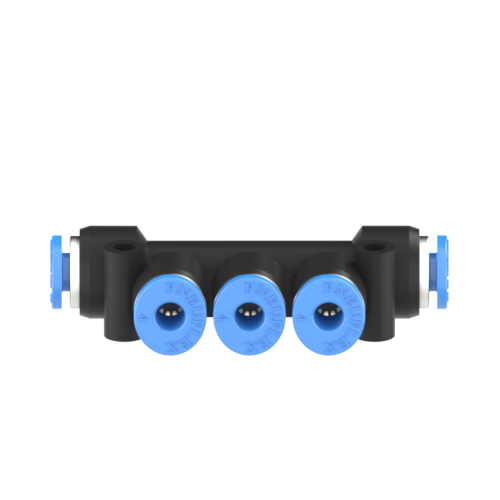

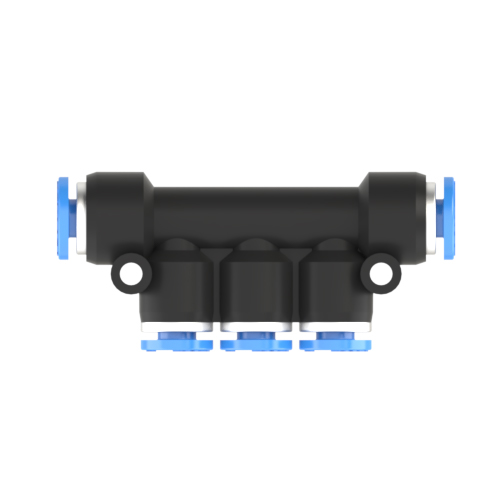

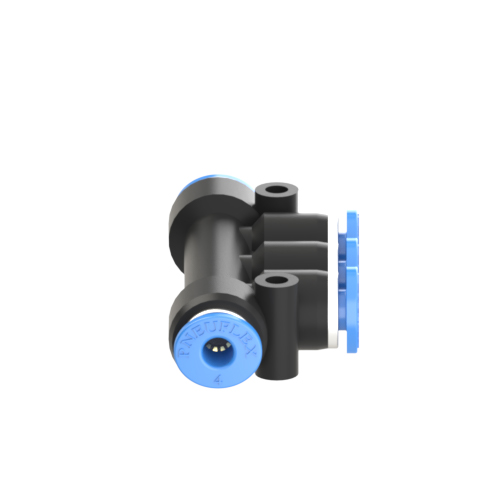

4mm union branch push to connect fitting is used to connect two 4mm tubing connections on both ends in straight line and three 4mm tubing on the branch with same diameter at right angles. 4mm O.D tubing x 4mm O.D tubing union branch push to connect fitting is made of strong thermoplastic (PBT) and stainless steel tube gripping claw. 4mm O.D tubing union branch connector push to connect fitting is widely used in industries automatic production equipment like machinery, electronics, automobile, packaging and medical.

4mm Union Branch Push to Connect Fitting 4mm union branch 4mm push to connect fitting 4mm push to connect fitting union branch
Product Specifications
Applicable Tubing O.D.: 4mm
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: PBT Plastic
Seal Material: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -20∼80°C | -4∼176°F
Lock Claw: Stainless Steel (SUS)
Applicable Tube: PU / PA / PE / PVC
Request for Quotation
RoHS Compliant
