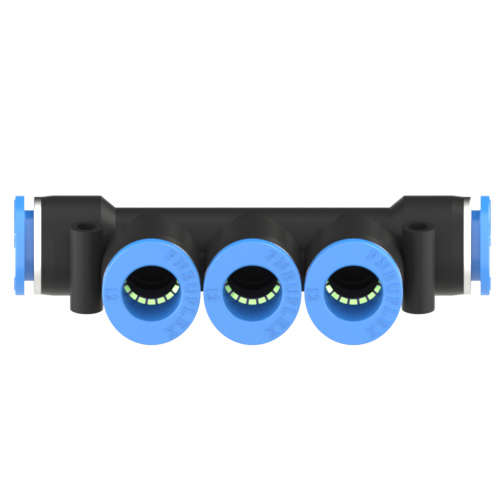

PK 12 | 12mm Union Branch - 12mm Push to Connect Fitting
12mm union branch push to connect fitting is used to connect two 12mm tubing connections on both ends in straight line and three 12mm tubing on the branch with same diameter at right angles. 12mm O.D tubing x 12mm O.D tubing union branch push to connect fitting is made of strong thermoplastic (PBT) and stainless steel tube gripping claw. 12mm O.D tubing union branch connector push to connect fitting is widely used in industries automatic production equipment like machinery, electronics, automobile, packaging and medical.
Product Specifications
| Applicable Tubing O.D.: | 12mm |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | PBT Plastic |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC |
Category: PK Union Branch Push to Connect Fitting
