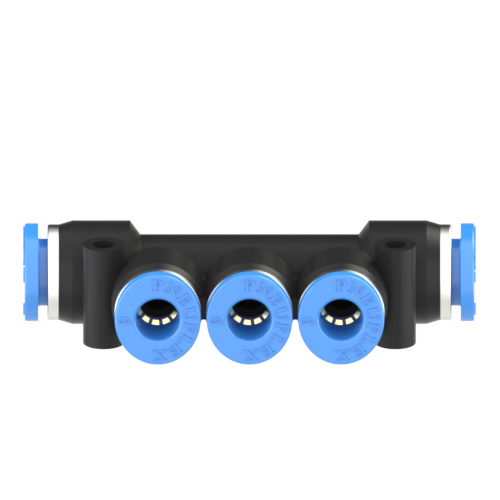

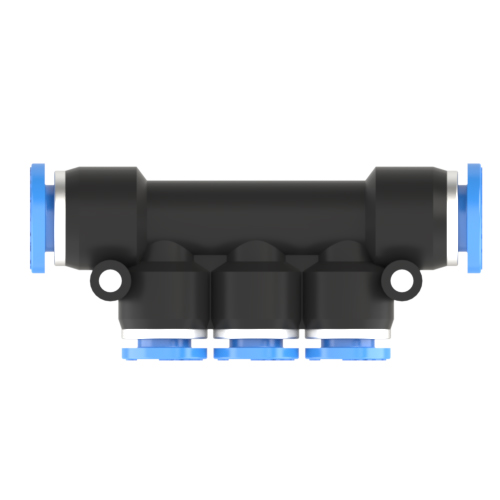

PKG 08-06 | 8mm to 6mm Union Branch Reducer Push to Connect Fitting

8mm tubing x 6mm tubing union branch reducer push to connect fitting is used for in-line distribution of air to three smaller diameter tubing connections at a right angle to the supply line. 8mm O.D tubing x 6mm O.D tubing union branch connector reducer push to connect fitting is made of strong thermoplastic (PBT) and stainless steel tube gripping claw. 8mm O.D tubing x 6mm O.D tubing union branch reducer push to connect fittings enable quick tubing connection and disconnection.

Product Specifications

Applicable Tubing O.D.1:	8mm
Applicable Tubing O.D.2:	6mm

Fluid Admitted:	Air, Vaccum, Water(no freezing)
Body Material:	PBT Plastic
Seal Material:	NBR
Working Pressure:	0∼1.0MPa | 0∼150psi
Proof Pressure:	3.0Mpa | 435psi
Negative Pressure:	-100Kpa | -29.5 In Hg
Working Temperature:	-20∼80°C | -4∼176°F
Lock Claw:	Stainless Steel (SUS)
Applicable Tube:	PU / PA / PE / PVC...
