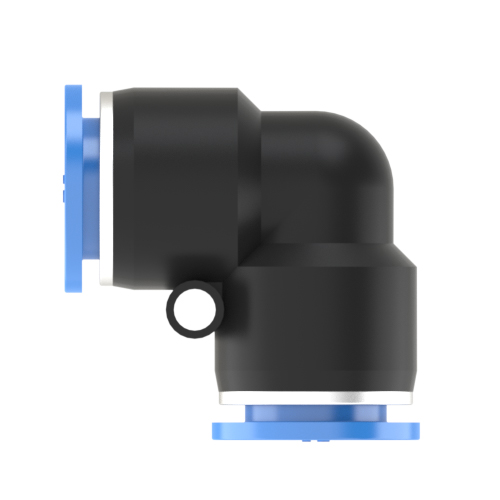

PV 15 | 15mm Union Elbow - 15mm Push to Connect Fitting
15mm union elbow push to connect fitting is used to connect two 15mm tubing with same diameter on the both ends at a right angle. Pneuflex push to connect fittings provide a leak-free means of easily connecting hoses in your compressed air system.
Product Specifications
| Applicable Tubing O.D.: | 15mm |
| Fluid Admitted: | Air, Vacuum, Water (no freezing) |
| Body Material: | PBT Plastic |
| Seal Material: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | -20∼80°C | -4∼176°F |
| Lock Claw: | Stainless Steel (SUS) |
| Applicable Tube: | PU / PA / PE / PVC Teflon Tubing ... |
Category: PV Union Elbow Push to Connect Fitting
