PY Union Y | Push to Connect Fitting

Union Y push to connect fitting is used to connect three tubes of the same diameter for dividing air distribution. Best choice when there is a need to split air flow into two tubes without changing direction. Union Y pneumatic push-to-connect fitting bodies are made of strong thermoplastic (PBT) and have stainless steel tube gripping claws. Simple installation--push the tubing in, and the connection is complete. To release the tubing, press the release sleeve on the fitting, and you can easily pull the tube out. Accommodate metric tubing O.D ranging from 4 mm to 16 mm, inch tubing O.D ranging from 1/8" to 1/2".

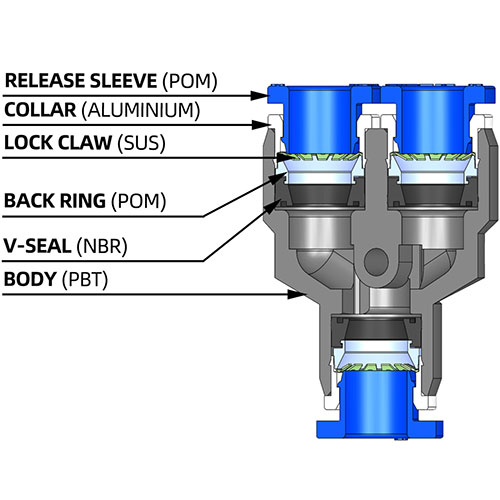

Construction | Specifications of PY Union Y - Push to Connect Fitting

Product Specifications

Fluid Admitted:	Air, Vaccum, Water(no freezing)
Body Material:	PBT Plastic
Seal Material:	NBR
Working Pressure:	0∼1.0MPa \| 0∼150psi
Proof Pressure:	3.0Mpa \| 435psi
Negative Pressure:	-100Kpa \| -29.5 In Hg
Working Temperature:	-20∼80°C \| -4∼176°F
Lock Claw:	Stainless Steel (SUS)
Applicable Tube:	PU / PA / PE / PVC
